Rite-Lite
Series 3
back

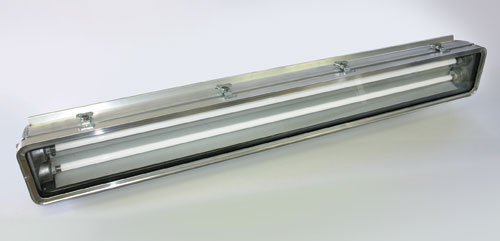

RL 48 3 T5
Series 3 Applications:
  1. Oilwell Drilling Rigs
  2. Refineries and other Petro-Chemical Installations
  3. Agriculture
  4. Forestry
  5. Mining

Certifications:
  1. Class I, II Division 2
  2. Groups A,B,C, D
  3. Class III
  4. Enclosure type 4
  5. Temperature T3A

Key Features:
  1. Robust Construction
  2. Spring-loaded lampholders for vibration / shock resistance
  3. Sleek, narrow design
  4. Flexible Mounting Options
  5. Easy lamp replacement
  6. Suitable for Extreme environments

TECHNICAL SPECIFICATIONS
Supply 120-277V, 50/60hz
Current Draw (Watts) 120
Lamp Life 25,000 hrs
Fixture Lumens 10,000
Lamps 2 x F48T5HO
Min Start Temperature
 -29° C
Housing Material Aluminum
Lens-Frame Material Aluminum
Frame Hardware Stainless Steel
Lens Material Polycarbonate
Lens Gasket Material Sunlight, oil and water resistant neoprene
Mounting Bracket Galvanized Steel
Shipping Weight 27 lbs
Carton Dimensions 7.75 x 6.375 x 57”

Line Drawin

Download Acrobat file Download PDF of Technical Data Sheet.
